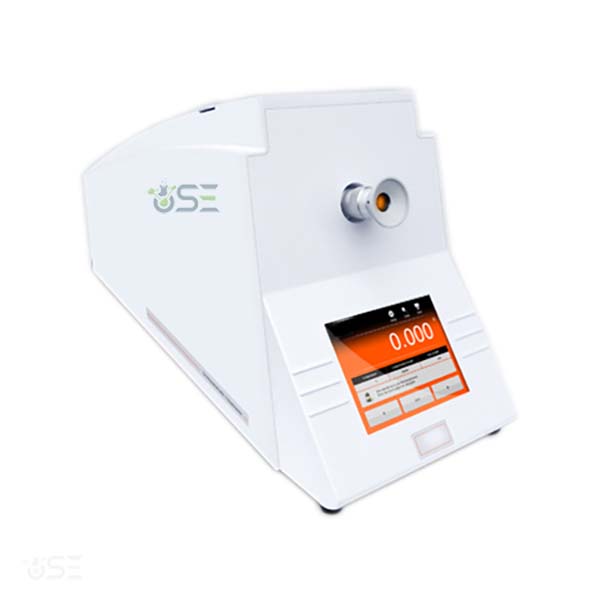

Laboratory Semiautomatic Polarimeter Manufacturer,Supplier and Exporter in India
Product Code : EL-C-11119
Quick Answer: The Laboratory Semiautomatic Polarimeter has four measurement modes (optical rotation, specific rotation, concentration and International Sugar Scale) over ±90° and ±130°Z, with a 5.6 inch TFT touch screen.
Last updated: October 2026
Key Features
- Range ±90°, ±130°Z; accuracy ±0.02°, ±0.05°Z; resolution 0.005°
- LED light source with interference filter, 589 nm
- Built-in sample chamber temperature sensor with automatic temperature compensation
- Memory for 100 readings with real-time clock stamp; USB data transfer
- 1 to 3 point calibration, auto-zero and zero correction
Technical Specifications
| Specification | Value |
|---|---|
| Measurement modes | Optical rotation, specific rotation, concentration, °Z (ISS) |
| Measuring range | ±90°, ±130°Z |
| Accuracy | ±0.02°, ±0.05°Z |
| Resolution | 0.005° |
| Wavelength | 589 nm |
| Light source | LED, interference filter |
| Test tube | 50/100/200 mm |
| Temperature range | 0-100°C |
| Temperature accuracy | ±0.5°C |
| Memory | Up to 100 data sets |
| Output | USB |
| Display | 5.6 inch TFT touch screen |
| Power | AC 220V/50Hz |
| Dimensions | 550 (L) x 300 (W) x 220 (H) mm |
About This Product
Tube lengths of 100 or 200 mm can be selected, or another value entered manually, and pressing the Return button brings the instrument back to zero. An on-screen operating manual and automatic messages guide the user, and a reset function returns all parameters to the factory defaults.
Frequently Asked Questions
Q1. Can stored readings be moved to a computer?
Yes. Up to 100 readings are stored with a real-time clock stamp and can be transferred to a computer through the USB interface.
Q2. How is zero error removed?
Zero correction adjusts the optical visual field to eliminate zero error, and the auto-zero feature returns the reading to zero when the Return button is pressed.
Related: Colorimeter range, Laboratory Manual Disc Polarimeter, Laboratory Automatic Polarimeter, Lab Automatic Polarimeter.
For a quotation on the Laboratory Semiautomatic Polarimeter, contact Scientific Equipments.
