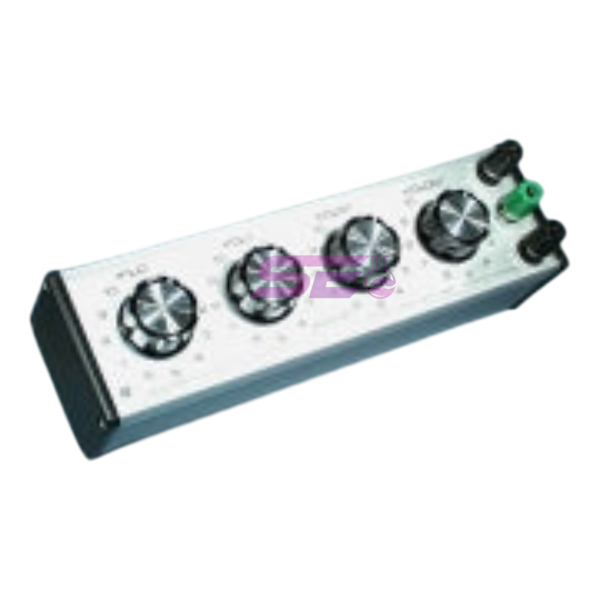

Capacitor Box 4 Dial 11.111uF Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11838

The Capacitor Box 4 Dial 11.111uF by Scientifc Equipment is an educational electrical laboratory apparatus designed for capacitance selection, circuit experiments, RC circuit demonstrations, charge and discharge studies, time constant measurements, and electronics practical work. It is suitable for school physics laboratories, college electronics labs, STEM classrooms, electrical training labs, and supervised student experiments.

This 4 dial capacitor box allows users to select different capacitance values up to 11.111uF, depending on dial setting and product configuration. It is useful for teaching capacitance, capacitor combinations, energy storage, transient response, AC/DC circuit behavior, and practical circuit analysis.

Product Description

A capacitor box is a variable capacitance apparatus used in electrical and electronics experiments. By adjusting the dials, students can select a required capacitance value and connect it into a circuit for demonstrations involving charging, discharging, filtering, coupling, timing, and resonance-related classroom activities.

The Scientifc Equipment Capacitor Box 4 Dial 11.111uF may include a four-dial capacitance selection system, insulated cabinet, input/output terminals, marked capacitance ranges, internal capacitor network, and protective enclosure depending on product configuration. It is designed for supervised low-voltage educational laboratory use only.

Key Features

• Educational 4 dial capacitor box for physics and electronics experiments.
• Capacitance range up to 11.111uF depending on dial setting and configuration.
• Useful for RC circuit, charge-discharge, time constant, and capacitance studies.
• Helps students understand series and parallel capacitor behavior in circuits.
• Clearly marked dial arrangement supports convenient capacitance selection.
• Suitable for school labs, college electronics labs, and STEM practicals.
• Can be used with compatible low-voltage power supplies, meters, and circuit boards.
• Supports measurement, calculation, observation, and circuit analysis activities.
• Designed for supervised educational and laboratory use only.

Product Specifications

How to Use

1. Place the Capacitor Box 4 Dial 11.111uF on a stable, clean, dry, and non-conductive laboratory surface.
2. Inspect the cabinet, terminals, dials, markings, and connecting leads before use.
3. Ensure the circuit power supply is switched off before connecting the capacitor box.
4. Select the required capacitance value by setting the four dials according to the experiment requirement.
5. Connect the capacitor box terminals into the circuit using suitable insulated connecting leads.
6. Use only the recommended low-voltage supply or signal source suitable for the apparatus rating.
7. Switch on the circuit and observe readings using a voltmeter, ammeter, multimeter, oscilloscope, or other compatible measuring instrument.
8. For RC experiments, record voltage change with time during charging or discharging.
9. Change capacitance values as required only after switching off the circuit and safely discharging the capacitor.
10. Compare results for different capacitance settings and calculate time constant or stored energy as directed by the teacher.
11. After the experiment, switch off the power, discharge the capacitor safely, disconnect leads, and store the box properly.

Safety and Handling Instructions

• Use only under teacher, laboratory instructor, or trained adult supervision.
• Use only within the recommended voltage rating of the capacitor box.
• Do not connect directly to mains electricity.
• Switch off the circuit before changing dial settings or circuit connections.
• Always discharge capacitors safely before touching terminals or changing connections.
• Do not short terminals with bare hands or unsuitable metal objects.
• Do not use damaged leads, loose terminals, cracked cabinet, faulty dials, or exposed wiring.
• Keep the apparatus away from water, chemicals, damp surfaces, flames, and excessive heat.
• Do not exceed current, voltage, frequency, or power limits recommended for the apparatus.
• Store in a clean, dry, and protective place after use.

Educational Applications

• Demonstrating capacitor charging and discharging.
• Studying RC time constant using different capacitance values.
• Explaining capacitance and electrical energy storage.
• Supporting practical circuit building and electronics training.
• Comparing circuit response with different capacitance settings.
• Teaching series and parallel capacitor concepts.
• Useful for physics, electronics, STEM, and electrical measurement experiments.
• Encouraging circuit analysis, observation, measurement, graphing, and scientific reasoning.

Why Choose Scientifc Equipment Capacitor Box 4 Dial 11.111uF?

The Scientifc Equipment Capacitor Box 4 Dial 11.111uF provides a practical and flexible way to select capacitance values for classroom circuit experiments. Its 4 dial design supports controlled capacitance variation, helping students understand capacitor behavior, RC circuits, and electrical energy storage through supervised hands-on learning.

FAQ

1. What is Capacitor Box 4 Dial 11.111uF used for?

It is used for selecting capacitance values in physics and electronics experiments such as RC circuits, capacitor charging and discharging, and time constant measurement.

2. What does 11.111uF mean?

It indicates the maximum selectable capacitance value up to 11.111 microfarads, depending on dial setting and product configuration.

3. What is the purpose of the 4 dials?

The four dials allow users to select different capacitance steps and combine them to obtain the required capacitance value for the experiment.

4. Is this capacitor box suitable for school laboratories?

Yes, it is suitable for school physics labs, college electronics labs, STEM classrooms, electrical training labs, and supervised student practicals.

5. Can it be connected to mains electricity?

No, it must not be connected directly to mains electricity. Use only suitable low-voltage educational circuits within the product rating.

6. Should capacitors be discharged after use?

Yes, capacitors should be safely discharged after use and before changing connections, as they may retain electrical charge.

7. What accessories are useful with this product?

Useful accessories include a low-voltage power supply, resistor box, multimeter, voltmeter, ammeter, oscilloscope, breadboard, and insulated connecting leads.

8. How should the capacitor box be stored?

Store it in a clean, dry, and protective place away from moisture, heat, chemicals, dust, impact, and rough handling. Keep terminals and dials clean.
