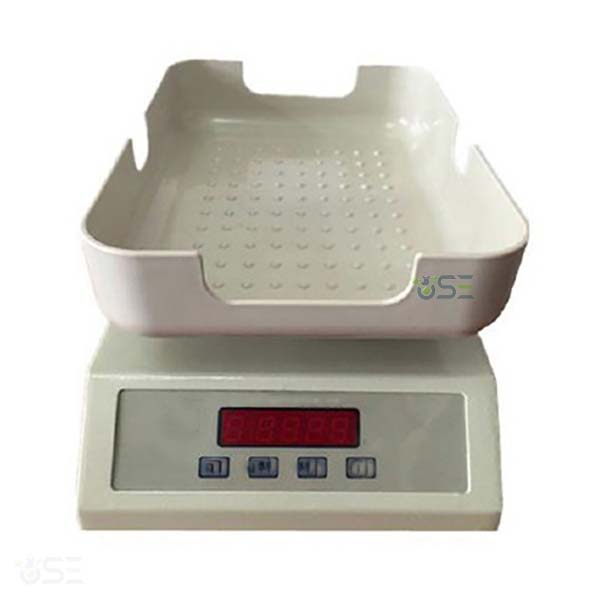

Blood Collection Monitor Manufacturer,Supplier and Exporter in India
Product Code : EL-OLE-11231
Quick Answer: The Blood Collection Monitor is a swinging-tray unit with a 0–1200 ml range read in 1 ml divisions, a swing frequency of 30–32 rpm and a sound-light alarm. It comes in 2.8 kg and 3.3 kg versions.
Last updated: October 2026
Key Features
Range 0–1200 ml with 1 ml division value
Tray swing frequency 30–32 rpm; pendulum angle 13±2
Sound-light alarm with tube blocking
Blocking for tubing of Ø3–Ø6 mm outside diameter and 0.5 mm wall thickness
40 W power; 110 V 60 Hz or 220 V 50 Hz
Technical Specifications
Specification
Value
Range
0–1200 ml
Division value
1 ml
Swing frequency
30–32 rpm
Pendulum angle
13±2
Power
40 W
Alarm
Sound-light alarm
Blocking tubing
OD Ø3–Ø6 mm, wall thickness 0.5 mm
Voltage
110 V 60 Hz / 220 V 50 Hz
Dimensions (mm)
220x170x160 / 275x230x210
Weight
2.8 kg / 3.3 kg
About This Product
This unit has a swinging tray, a scale covering 0–1200 ml in 1 ml divisions and a sound-light alarm. It is made in a 220x170x160 mm, 2.8 kg version and a 275x230x210 mm, 3.3 kg version, both rated 40 W for 110 V 60 Hz or 220 V 50 Hz supply.
Frequently Asked Questions
Q1. What sizes are available? 220x170x160 mm (2.8 kg) and 275x230x210 mm (3.3 kg). Both are rated 40 W for 110 V 60 Hz or 220 V 50 Hz.
