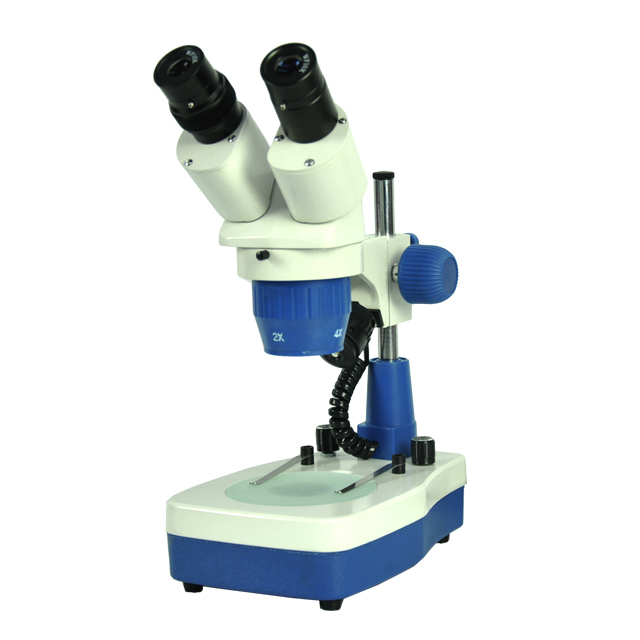

40X Stereo Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11077
Quick Answer: The 40X Stereo Microscope is a binocular stereo microscope with WF10X eyepieces, objectives grouped as 1X/3X, 2X/4X or 1X/2X, a 100mm working distance and separately adjustable top and bottom 3.5V/1W LED lamps.
Last updated: October 2026
Key Features
- Binocular articulated free head, 45° inclined, 360° rotatable, interpupillary distance 55-75mm, diopter on the left
- WF10X eyepiece (optional WF15X, WF20X)
- Objectives grouped 1X/3X, 2X/4X or 1X/2X; working distance 100mm
- Rack and pinion focusing with hand wheels for adjusting focusing torque; range 40mm
- Φ90mm stage with a glass plate for the bottom lamp and a black-white plastic plate for top illumination
- Top and bottom 3.5V/1W LED lamps, adjustable separately
Technical Specifications
| Specification | Value |
|---|---|
| Head | Binocular articulated free, 45° inclined, 360° rotatable, interpupillary distance 55-75mm, diopter on the left |
| Eyepiece | WF10X (optional WF15X, WF20X) |
| Objectives | Grouped 1X/3X, 2X/4X or 1X/2X |
| Working distance | 100mm |
| Focusing | Rack and pinion, hand wheels for focusing torque, range 40mm |
| Stage | Φ90mm; glass plate (bottom lamp), black-white plastic plate (top illumination) |
| Base | 210X140X50mm, with spring clips |
| Pole / arm | 205mm / 180mm |
| Illumination | Top and bottom 3.5V/1W LED, adjustable separately |
| Net weight | 2.5kg |
| Overall size | 210X140X360mm |
About This Product
This stereo microscope stands on a 210X140X50mm base with spring clips, with a 205mm pole and a 180mm arm, and measures 210X140X360mm overall. The Φ90mm stage comes with a glass plate for the bottom lamp and a black-white plastic plate for top illumination, and the top and bottom LED lamps can be adjusted separately.
Frequently Asked Questions
Q1. Which objective pairs are offered?
Objectives are grouped as 1X/3X, 2X/4X or 1X/2X, used with WF10X eyepieces (WF15X and WF20X optional).
Q2. What stage plates are included?
A glass plate for the bottom lamp and a black-white plastic plate for top illumination, on a Φ90mm stage.
Related: Biological Microscope range, LED Stereo Microscope, Binocular Stereo Microscope, Zoom Stereo Microscope Universal Stand.
For a quotation on the 40X Stereo Microscope, contact Scientific Equipments.
